Street Series · SS-5

Apex

Name: Sentali Apex
Brand: Sentali Wheels
SKU: SS-5

From C$243.20 per wheel

Finish Gloss Black

Diameters

17"18"19"20"22"

Flow Formed Street Performance Series: STRONGER || LIGHTER || SHOCK RESISTANT || INCREASED LOAD CAPACITY

Request a quote Specs & SKUs

Collection: Street Series
Construction: Flow-formed
Diameters: 17" · 18" · 19" · 20" · 22"
Widths: 7.5" · 8.5" · 9" · 9.5" · 10.5"
Bolt patterns: 5x100 · 5x112 · 5x114.3 · 5x120 · 5X112 · 5X114.3 · 5X115 · 5X120 · 5X127
Offsets: +15 to +42 mm
Centre bore: 66.6 to 74.1 mm
Load rating: Up to 2,000 lbs per wheel
SKUs: 46 across 3 finishes · See every SKU

In motion

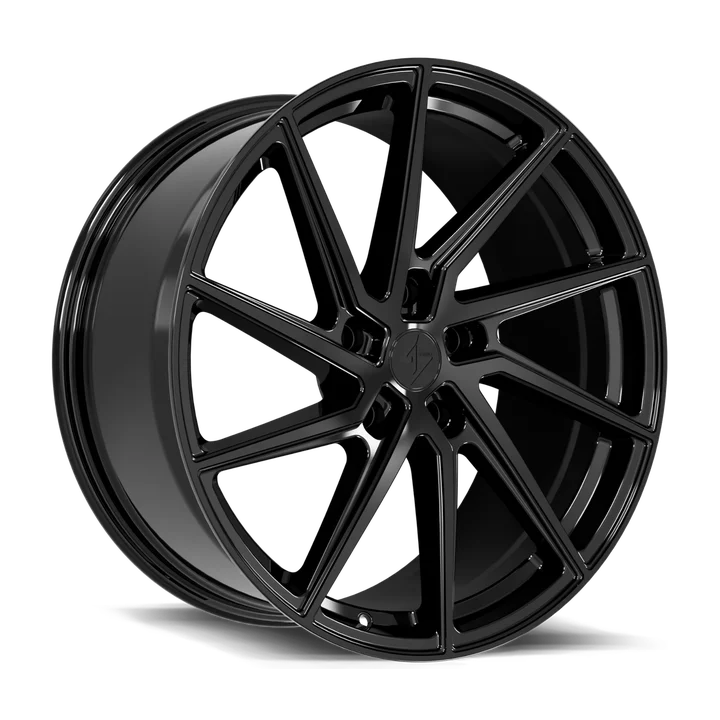

The Apex, up close.

Flow-forming brings forged-like strength to everyday performance.

Request a quote The Street Series collection

Design & engineering

Built the Sentali way.

Flow forming is one of the most advanced manufacturing technologies. Flow Forming Technology involves the application of pressure to the inner barrel of the wheel, while spinning and after it has been casted.

Staggered and Non-Staggered fitments available.
Conical Lug seat
Designed and Engineered proudly in Canada.

Specs & SKUs

Every size, every SKU

Showing the Gloss Black finish. Choose another finish above to update the table, or download every finish as a spreadsheet.

Search SKU or size Diameter Bolt pattern 46 SKUs All SKUs (CSV)

Size	Bolt pattern	Offset (mm)	Centre bore (mm)	Load (lbs)	SKU
17 × 7.5	5x100	+42	73.1	1,600	SS5117754424
17 × 7.5	5x112	+42	66.6	1,600	SS5117752421
17 × 7.5	5x114.3	+35	73.1	1,600	SS5117751354
17 × 7.5	5x120	+35	72.6	1,600	SS5117753353
18 × 8.5	5x100	+35	73.1	1,800	SS5118854354
18 × 8.5	5x112	+35	66.6	1,800	SS5118852351
18 × 8.5	5x112	+42	66.6	1,800	SS5118852421
18 × 8.5	5x114.3	+35	73.1	1,800	SS5118851354
18 × 8.5	5x120	+35	72.6	1,800	SS5118853353
18 × 9.5	5x112	+38	66.6	1,800	SS5118952381
18 × 9.5	5x114.3	+38	73.1	1,800	SS5118951384
18 × 9.5	5x120	+38	72.6	1,800	SS5118953383
19 × 8.5	5x112	+35	66.6	1,800	SS5119852351
19 × 8.5	5x114.3	+35	73.1	1,800	SS5119851354
19 × 8.5	5x120	+35	72.6	1,800	SS5119853353
19 × 9.5	5x112	+25	66.6	1,800	SS5119952251
19 × 9.5	5x112	+38	66.6	1,800	SS5119952381
19 × 9.5	5x114.3	+38	73.1	1,800	SS5119951384
19 × 9.5	5x120	+25	72.6	1,800	SS5119953253
19 × 9.5	5x120	+38	72.6	1,800	SS5119953383
19 × 10.5	5x112	+25	66.6	1,800	SS51191052251
19 × 10.5	5x112	+35	66.6	1,800	SS51191052351
19 × 10.5	5x120	+35	72.6	1,800	SS51191053353
20 × 9	5X112	+25	66.6	1,900	SS512092251
20 × 9	5X112	+35	66.6	1,900	SS512092351
20 × 9	5X114.3	+25	73.1	1,900	SS512091254
20 × 9	5X114.3	+35	73.1	1,900	SS512091354
20 × 9	5X115	+15	71.6	1,900	SS512096152
20 × 9	5X120	+25	72.6	1,900	SS512093253
20 × 9	5X120	+35	72.6	1,900	SS512093353
20 × 9	5X127	+35	71.6	1,900	SS512095352
20 × 10.5	5X112	+25	66.6	1,900	SS51201052251
20 × 10.5	5X112	+40	66.6	1,900	SS51201052401
20 × 10.5	5X114.3	+40	73.1	1,900	SS51201051404
20 × 10.5	5X115	+20	71.6	1,900	SS51201056202
20 × 10.5	5X120	+35	72.6	1,900	SS51201053353
22 × 9.5	5X112	+35	66.6	2,000	SS5122952351
22 × 9.5	5X114.3	+35	73.1	2,000	SS5122951354
22 × 9.5	5X115	+15	71.6	2,000	SS5122956152
22 × 9.5	5X120	+35	72.6	2,000	SS5122953353
22 × 9.5	5X127	+35	71.6	2,000	SS5122955352
22 × 10.5	5X112	+25	66.6	2,000	SS51221052251
22 × 10.5	5X112	+40	66.6	2,000	SS51221052401
22 × 10.5	5X115	+20	71.6	2,000	SS51221056202
22 × 10.5	5X120	+35	74.1	2,000	SS51221053355
22 × 10.5	5X127	+28	71.6	2,000	SS51221055282
