Barrel Forged X
BFX-4
From C$525.51 per wheel
Finish Gloss Black Milled with Gloss Black Lip
Diameters

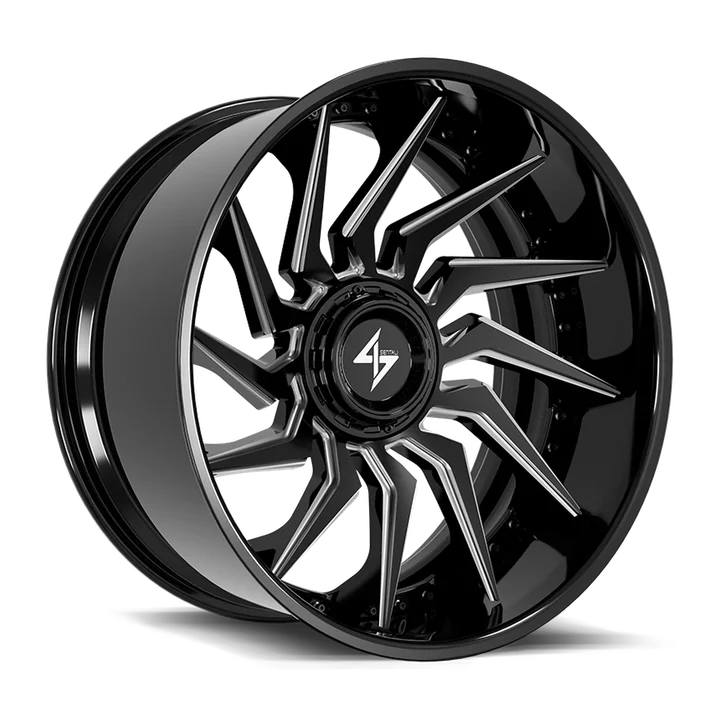

The Sentali BFX4 showcases a bold and intricate design with directional spokes that radiate a sense of dynamic motion. These angular spokes are meticulously sculpted to taper elegantly toward the barrel, appearing to float seamlessly above it, adding an element of sophistication. The wheel features a semi-concave profile that strikes the perfect balance between aggressive styling and structural depth.
- Collection
- Barrel Forged X
- Construction
- Forged barrel, flow-formed floating centre
- Diameters
- 22" · 24" · 26"
- Widths
- 10" · 12" · 14"
- Bolt patterns
- 5x127 · 5x139.7 · 6x135 · 6x139.7 · 8x165.1 · 8x170 · 8x180
- Offsets
- -76 to -24 mm
- Centre bore
- 78.1 to 125.2 mm
- Load rating
- Up to 3,200 lbs per wheel
- SKUs
- 120 across 6 finishes · See every SKU
In motion
The BFX-4, up close.
A forged barrel, a floating centre and the drama of two-tone finishes.
Design & engineering
Built the Sentali way.
Barrel Forged Xtreme Wheels: Crafted for performance and precision, Barrel Forged Xtreme wheels represent the pinnacle of wheel design. Each wheel is engineered using the highest quality forged 6061-T6 aluminum barrel, delivering unmatched strength and durability.
- Aero-Space Grade 6061-T6 Forged Aluminum Barrel
- Floating Center Cap (Standard): Features an innovative floating center cap that stays upright while the wheel is in motion, showcasing the Sentali logo at all times.
- 2 Tone Finishes with Hybrid Friction Welding Technology.
- 5, 6 and 8 Lug Applications
- Designed and Engineered proudly in Canada.
Specs & SKUs
Every size, every SKU
Showing the Gloss Black Milled with Gloss Black Lip finish. Choose another finish above to update the table, or download every finish as a spreadsheet.
| Size | Bolt pattern | Offset (mm) | Centre bore (mm) | Load (lbs) | SKU |
|---|---|---|---|---|---|
| 22 × 10 | 5x139.7 / 5x127 | -24 | 78.1 | 2,500 | SBFX41221051241 |
| 22 × 10 | 6x139.7 / 6x135 | -24 | 106.1 | 2,500 | SBFX41221061242 |
| 22 × 10 | 8x170 / 8x165.1 | -24 | 125.2 | 3,200 | SBFX41221081243 |
| 22 × 10 | 8x180 / 8x165.1 | -24 | 125.2 | 3,200 | SBFX41221082243 |
| 22 × 12 | 5x139.7 / 5x127 | -44 | 78.1 | 2,500 | SBFX41221251441 |
| 22 × 12 | 6x139.7 / 6x135 | -44 | 106.1 | 2,500 | SBFX41221261442 |
| 22 × 12 | 8x170 / 8x165.1 | -44 | 125.2 | 3,200 | SBFX41221281443 |
| 22 × 12 | 8x180 / 8x165.1 | -44 | 125.2 | 3,200 | SBFX41221282443 |
| 24 × 12 | 5x139.7 / 5x127 | -44 | 78.1 | 2,500 | SBFX41241251441 |
| 24 × 12 | 6x139.7 / 6x135 | -44 | 106.1 | 2,500 | SBFX41241261442 |
| 24 × 12 | 8x170 / 8x165.1 | -44 | 125.2 | 3,200 | SBFX41241281443 |
| 24 × 12 | 8x180 / 8x165.1 | -44 | 125.2 | 3,200 | SBFX41241282443 |
| 24 × 14 | 5x139.7 / 5x127 | -76 | 78.1 | 2,500 | SBFX41241451761 |
| 24 × 14 | 6x139.7 / 6x135 | -76 | 106.1 | 2,500 | SBFX41241461762 |
| 24 × 14 | 8x170 / 8x165.1 | -76 | 125.2 | 3,200 | SBFX41241481763 |
| 24 × 14 | 8x180 / 8x165.1 | -76 | 125.2 | 3,200 | SBFX41241482763 |
| 26 × 14 | 5x139.7 / 5x127 | -76 | 78.1 | 2,500 | SBFX41261451761 |
| 26 × 14 | 6x139.7 / 6x135 | -76 | 106.1 | 2,500 | SBFX41261461762 |
| 26 × 14 | 8x170 / 8x165.1 | -76 | 125.2 | 3,200 | SBFX41261481763 |
| 26 × 14 | 8x180 / 8x165.1 | -76 | 125.2 | 3,200 | SBFX41261482763 |
Not sure which size suits your vehicle? Ask our fitment team. Bolt patterns, offsets and SKUs can change; please confirm before ordering.
