Forged Off-Road
SF-9
From C$1,028 per wheel
Finish Polished
Diameters
22"24"26"28"30"

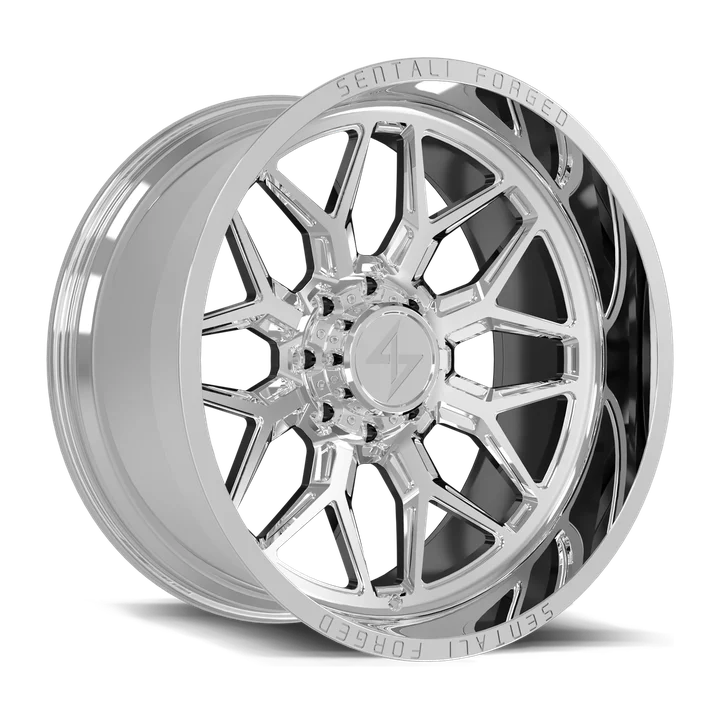

The Sentali SF-09 features an aggressive multi-spoke design with sharp geometric milling and deep dimensional contours that create a bold, high-end forged appearance. Finished with a clean stepped lip and precision-machined details, the SF-09 delivers a perfect balance of luxury styling and offroad presence. Engineered for lifted trucks and custom builds, this design stands out from every angle.
- Collection
- Forged Off-Road
- Construction
- Monoblock forged 6061-T6
- Diameters
- 22" · 24" · 26" · 28" · 30"
- Widths
- 10" · 12" · 14" · 16"
- Bolt patterns
- 5x127 · 5x139.7 · 6x135 · 6x139.7 · 8x165.1 · 8x170 · 8x180 · 5/6-lug blank (custom drilled) · 8-lug blank (custom drilled)
- Offsets
- -99 to -24 mm
- Centre bore
- 71.5 to 125.2 mm
- Load rating
- Up to 3,200 lbs per wheel
- SKUs
- 445 across 5 finishes · See every SKU
Design & engineering
Built the Sentali way.
The Forged Off-Road Series is a one-piece wheel constructed using a mono-block forging process, available in sizes ranging from 22" to 30". These wheels are crafted from aerospace-grade 6061-T6 forged aluminum alloys, known for their superior mechanical properties, making them ideal for engineering precision.
- Constructed from Aerospace-Grade 6061-T6 Forged Aluminum Block for exceptional strength and durability
- Full High Lustre Polished Finish
- Equipped with fully exposed stainless steel 6mm cap bolts
- High Quality Painted Finishes Available
- Optional custom engravings on the lip for personalized style
- Compatible with all bolt patterns: 5, 6, and 8 lugs
- Hub-centric construction for precise fitment and improved performance
- Proudly designed in Canada
Specs & SKUs
Every size, every SKU
Showing the Polished finish. Choose another finish above to update the table, or download every finish as a spreadsheet.
90 SKUs
All SKUs (CSV)
| Size | Bolt pattern | Offset (mm) | Centre bore (mm) | Load (lbs) | SKU |
|---|---|---|---|---|---|
| 22 × 10 | 5/6-lug blank (custom drilled) | -24 | 71.5 | 2,500 | SF92210XX24P |
| 22 × 10 | 5x127 | -24 | 71.5 | 2,500 | SF922105124P |
| 22 × 10 | 5x139.7 | -24 | 77.8 | 2,500 | SF922105224P |
| 22 × 10 | 6x135 | -24 | 87.1 | 2,500 | SF922106124P |
| 22 × 10 | 6x139.7 | -24 | 106.2 | 2,500 | SF922106224P |
| 22 × 10 | 8-lug blank (custom drilled) | -24 | 124.3 | 3,200 | SF922108X24P |
| 22 × 10 | 8x165.1 | -24 | 125.2 | 3,200 | SF922108124P |
| 22 × 10 | 8x170 | -24 | 125.2 | 3,200 | SF922108324P |
| 22 × 10 | 8x180 | -24 | 124.3 | 3,200 | SF922108224P |
| 22 × 12 | 5/6-lug blank (custom drilled) | -44 | 71.5 | 2,500 | SF92212XX44P |
| 22 × 12 | 5x127 | -44 | 71.5 | 2,500 | SF922125144P |
| 22 × 12 | 5x139.7 | -44 | 77.8 | 2,500 | SF922125244P |
| 22 × 12 | 6x135 | -44 | 87.1 | 2,500 | SF922126144P |
| 22 × 12 | 6x139.7 | -44 | 106.2 | 2,500 | SF922126244P |
| 22 × 12 | 8-lug blank (custom drilled) | -44 | 124.3 | 3,200 | SF922128X44P |
| 22 × 12 | 8x165.1 | -44 | 125.2 | 3,200 | SF922128144P |
| 22 × 12 | 8x170 | -44 | 125.2 | 3,200 | SF922128344P |
| 22 × 12 | 8x180 | -44 | 124.3 | 3,200 | SF922128244P |
| 22 × 14 | 5/6-lug blank (custom drilled) | -76 | 71.5 | 2,500 | SF92214XX76P |
| 22 × 14 | 5x127 | -76 | 71.5 | 2,500 | SF922145176P |
| 22 × 14 | 5x139.7 | -76 | 77.8 | 2,500 | SF922145276P |
| 22 × 14 | 6x135 | -76 | 87.1 | 2,500 | SF922146176P |
| 22 × 14 | 6x139.7 | -76 | 106.2 | 2,500 | SF922146276P |
| 22 × 14 | 8-lug blank (custom drilled) | -76 | 124.3 | 3,200 | SF922148X76P |
| 22 × 14 | 8x165.1 | -76 | 125.2 | 3,200 | SF922148176P |
| 22 × 14 | 8x170 | -76 | 125.2 | 3,200 | SF922148376P |
| 22 × 14 | 8x180 | -76 | 124.3 | 3,200 | SF922148276P |
| 24 × 12 | 5/6-lug blank (custom drilled) | -44 | 71.5 | 2,500 | SF92412XX44P |
| 24 × 12 | 5x127 | -44 | 71.5 | 2,500 | SF924125144P |
| 24 × 12 | 5x139.7 | -44 | 77.8 | 2,500 | SF924125244P |
| 24 × 12 | 6x135 | -44 | 87.1 | 2,500 | SF924126144P |
| 24 × 12 | 6x139.7 | -44 | 106.2 | 2,500 | SF924126244P |
| 24 × 12 | 8-lug blank (custom drilled) | -44 | 124.3 | 3,200 | SF924128X44P |
| 24 × 12 | 8x165.1 | -44 | 125.2 | 3,200 | SF924128144P |
| 24 × 12 | 8x170 | -44 | 125.2 | 3,200 | SF924128344P |
| 24 × 12 | 8x180 | -44 | 124.3 | 3,200 | SF924128244P |
| 24 × 14 | 5/6-lug blank (custom drilled) | -76 | 71.5 | 2,500 | SF92414XX76P |
| 24 × 14 | 5x127 | -76 | 71.5 | 2,500 | SF924145176P |
| 24 × 14 | 5x139.7 | -76 | 77.8 | 2,500 | SF924145276P |
| 24 × 14 | 6x135 | -76 | 87.1 | 2,500 | SF924146176P |
| 24 × 14 | 6x139.7 | -76 | 106.2 | 2,500 | SF924146276P |
| 24 × 14 | 8-lug blank (custom drilled) | -76 | 124.3 | 3,200 | SF924148X76P |
| 24 × 14 | 8x165.1 | -76 | 125.2 | 3,200 | SF924148176P |
| 24 × 14 | 8x170 | -76 | 125.2 | 3,200 | SF924148376P |
| 24 × 14 | 8x180 | -76 | 124.3 | 3,200 | SF924148276P |
| 26 × 12 | 5/6-lug blank (custom drilled) | -44 | 71.5 | 2,500 | SF92612XX44P |
| 26 × 12 | 5x127 | -44 | 71.5 | 2,500 | SF926125144P |
| 26 × 12 | 5x139.7 | -44 | 77.8 | 2,500 | SF926125244P |
| 26 × 12 | 6x135 | -44 | 87.1 | 2,500 | SF926126144P |
| 26 × 12 | 6x139.7 | -44 | 106.2 | 2,500 | SF926126244P |
| 26 × 12 | 8-lug blank (custom drilled) | -44 | 124.3 | 3,200 | SF926128L44P |
| 26 × 12 | 8x165.1 | -44 | 125.2 | 3,200 | SF926128144P |
| 26 × 12 | 8x170 | -44 | 125.2 | 3,200 | SF926128344P |
| 26 × 12 | 8x180 | -44 | 124.3 | 3,200 | SF926128244P |
| 26 × 14 | 5/6-lug blank (custom drilled) | -76 | 71.5 | 2,500 | SF92614XX76P |
| 26 × 14 | 5x127 | -76 | 71.5 | 2,500 | SF926145176P |
| 26 × 14 | 5x139.7 | -76 | 77.8 | 2,500 | SF926145276P |
| 26 × 14 | 6x135 | -76 | 87.1 | 2,500 | SF926146176P |
| 26 × 14 | 6x139.7 | -76 | 106.2 | 2,500 | SF926146276P |
| 26 × 14 | 8-lug blank (custom drilled) | -76 | 124.3 | 3,200 | SF926148X76P |
| 26 × 14 | 8x165.1 | -76 | 125.2 | 3,200 | SF926148176P |
| 26 × 14 | 8x170 | -76 | 125.2 | 3,200 | SF926148376P |
| 26 × 14 | 8x180 | -76 | 124.3 | 3,200 | SF926148276P |
| 26 × 16 | 5/6-lug blank (custom drilled) | -99 | 71.5 | 2,500 | SF92616XX99P |
| 26 × 16 | 5x127 | -99 | 71.5 | 2,500 | SF926165199P |
| 26 × 16 | 5x139.7 | -99 | 77.8 | 2,500 | SF926165299P |
| 26 × 16 | 6x135 | -99 | 87.1 | 2,500 | SF926166199P |
| 26 × 16 | 6x139.7 | -99 | 106.2 | 2,500 | SF926166299P |
| 26 × 16 | 8-lug blank (custom drilled) | -99 | 124.3 | 3,200 | SF926168X99P |
| 26 × 16 | 8x165.1 | -99 | 125.2 | 3,200 | SF926168199P |
| 26 × 16 | 8x170 | -99 | 125.2 | 3,200 | SF926168399P |
| 26 × 16 | 8x180 | -99 | 124.3 | 3,200 | SF926168299P |
| 28 × 16 | 5/6-lug blank (custom drilled) | -99 | 71.5 | 2,500 | SF92816XX99P |
| 28 × 16 | 5x127 | -99 | 71.5 | 2,500 | SF928165199P |
| 28 × 16 | 5x139.7 | -99 | 77.8 | 2,500 | SF928165299P |
| 28 × 16 | 6x135 | -99 | 87.1 | 2,500 | SF928166199P |
| 28 × 16 | 6x139.7 | -99 | 106.2 | 2,500 | SF928166299P |
| 28 × 16 | 8-lug blank (custom drilled) | -99 | 124.3 | 3,200 | SF928168X99P |
| 28 × 16 | 8x165.1 | -99 | 125.2 | 3,200 | SF928168199P |
| 28 × 16 | 8x170 | -99 | 125.2 | 3,200 | SF928168399P |
| 28 × 16 | 8x180 | -99 | 124.3 | 3,200 | SF928168299P |
| 30 × 16 | 5/6-lug blank (custom drilled) | -99 | 71.5 | 2,500 | SF93016XX99P |
| 30 × 16 | 5x127 | -99 | 71.5 | 2,500 | SF930165199P |
| 30 × 16 | 5x139.7 | -99 | 77.8 | 2,500 | SF930165299P |
| 30 × 16 | 6x135 | -99 | 87.1 | 2,500 | SF930166199P |
| 30 × 16 | 6x139.7 | -99 | 106.2 | 2,500 | SF930166299P |
| 30 × 16 | 8-lug blank (custom drilled) | -99 | 124.3 | 3,200 | SF930168399P |
| 30 × 16 | 8x165.1 | -99 | 125.2 | 3,200 | SF930168199P |
| 30 × 16 | 8x170 | -99 | 125.2 | 3,200 | SF930168399P |
| 30 × 16 | 8x180 | -99 | 124.3 | 3,200 | SF930168299P |
Not sure which size suits your vehicle? Ask our fitment team. Bolt patterns, offsets and SKUs can change; please confirm before ordering.
