Forged Off-Road
SF-5
From C$1,028 per wheel
Finish Polished
Diameters
22"24"26"28"30"

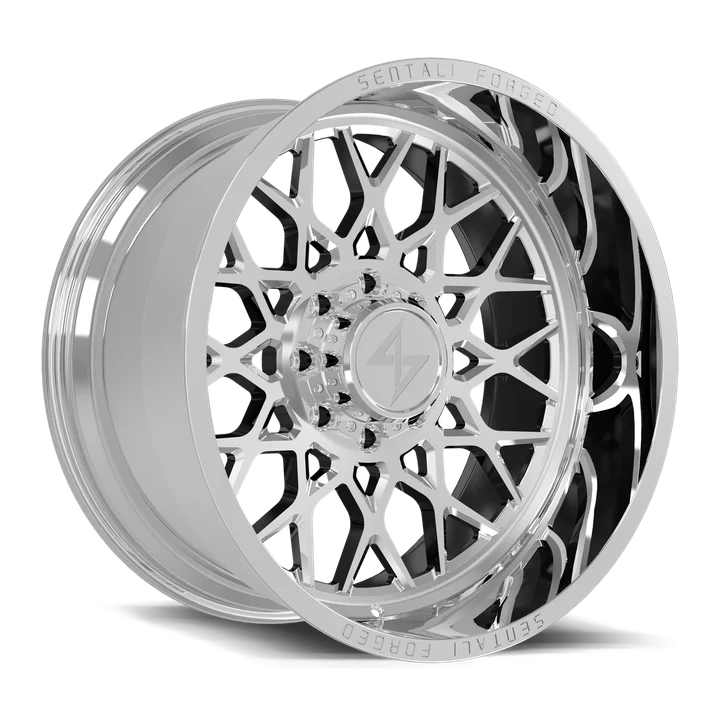

SF-5 showcases an interlacing spokes design that mimic the overlapping appearance of chopsticks. The spokes are slender, angular, and arranged in a crisscross pattern, creating a dynamic visual effect. The flat profile forgings used on this model allows for a maximum lip depth.
- Collection
- Forged Off-Road
- Construction
- Monoblock forged 6061-T6
- Diameters
- 22" · 24" · 26" · 28" · 30"
- Widths
- 10" · 12" · 14" · 16"
- Bolt patterns
- 5x127 · 5x139.7 · 6x135 · 6x139.7 · 8x165.1 · 8x170 · 8x180 · 5/6-lug blank (custom drilled) · 8-lug blank (custom drilled)
- Offsets
- -99 to -24 mm
- Centre bore
- 71.5 to 125.2 mm
- Load rating
- Up to 3,200 lbs per wheel
- SKUs
- 445 across 5 finishes · See every SKU
Design & engineering
Built the Sentali way.
The Forged Off-Road Series is a one-piece wheel constructed using a mono-block forging process, available in sizes ranging from 22" to 30". These wheels are crafted from aerospace-grade 6061-T6 forged aluminum alloys, known for their superior mechanical properties, making them ideal for engineering precision.
- Constructed from Aerospace-Grade 6061-T6 Forged Aluminum Block for exceptional strength and durability
- High Lustre Polished Finish
- Equipped with fully exposed stainless steel 6mm cap bolts
- Standard billet aluminum center caps included
- Hub-centric construction for precise fitment and improved performance
- High Quality Painted Finishes Available
- Compatible with all bolt patterns: 5, 6, and 8 lugs
- Optional custom engravings on the lip for personalized style
- Proudly designed and engineered in Canada
Specs & SKUs
Every size, every SKU
Showing the Polished finish. Choose another finish above to update the table, or download every finish as a spreadsheet.
90 SKUs
All SKUs (CSV)
| Size | Bolt pattern | Offset (mm) | Centre bore (mm) | Load (lbs) | SKU |
|---|---|---|---|---|---|
| 22 × 10 | 5/6-lug blank (custom drilled) | -24 | 71.5 | 2,500 | SF52210XX24P |
| 22 × 10 | 5x127 | -24 | 71.5 | 2,500 | SF522105124P |
| 22 × 10 | 5x139.7 | -24 | 77.8 | 2,500 | SF522105224P |
| 22 × 10 | 6x135 | -24 | 87.1 | 2,500 | SF522106124P |
| 22 × 10 | 6x139.7 | -24 | 106.2 | 2,500 | SF522106224P |
| 22 × 10 | 8-lug blank (custom drilled) | -24 | 124.3 | 3,200 | SF522108X24P |
| 22 × 10 | 8x165.1 | -24 | 125.2 | 3,200 | SF522108124P |
| 22 × 10 | 8x170 | -24 | 125.2 | 3,200 | SF522108324P |
| 22 × 10 | 8x180 | -24 | 124.3 | 3,200 | SF522108224P |
| 22 × 12 | 5/6-lug blank (custom drilled) | -44 | 71.5 | 2,500 | SF52212XX44P |
| 22 × 12 | 5x127 | -44 | 71.5 | 2,500 | SF522125144P |
| 22 × 12 | 5x139.7 | -44 | 77.8 | 2,500 | SF522125244P |
| 22 × 12 | 6x135 | -44 | 87.1 | 2,500 | SF522126144P |
| 22 × 12 | 6x139.7 | -44 | 106.2 | 2,500 | SF522126244P |
| 22 × 12 | 8-lug blank (custom drilled) | -44 | 124.3 | 3,200 | SF522128X44P |
| 22 × 12 | 8x165.1 | -44 | 125.2 | 3,200 | SF522128144P |
| 22 × 12 | 8x170 | -44 | 125.2 | 3,200 | SF522128344P |
| 22 × 12 | 8x180 | -44 | 124.3 | 3,200 | SF522128244P |
| 22 × 14 | 5/6-lug blank (custom drilled) | -76 | 71.5 | 2,500 | SF52214XX76P |
| 22 × 14 | 5x127 | -76 | 71.5 | 2,500 | SF522145176P |
| 22 × 14 | 5x139.7 | -76 | 77.8 | 2,500 | SF522145276P |
| 22 × 14 | 6x135 | -76 | 87.1 | 2,500 | SF522146176P |
| 22 × 14 | 6x139.7 | -76 | 106.2 | 2,500 | SF522146276P |
| 22 × 14 | 8-lug blank (custom drilled) | -76 | 124.3 | 3,200 | SF522148X76P |
| 22 × 14 | 8x165.1 | -76 | 125.2 | 3,200 | SF522148176P |
| 22 × 14 | 8x170 | -76 | 125.2 | 3,200 | SF522148376P |
| 22 × 14 | 8x180 | -76 | 124.3 | 3,200 | SF522148276P |
| 24 × 12 | 5/6-lug blank (custom drilled) | -44 | 71.5 | 2,500 | SF52412XX44P |
| 24 × 12 | 5x127 | -44 | 71.5 | 2,500 | SF524125144P |
| 24 × 12 | 5x139.7 | -44 | 77.8 | 2,500 | SF524125244P |
| 24 × 12 | 6x135 | -44 | 87.1 | 2,500 | SF524126144P |
| 24 × 12 | 6x139.7 | -44 | 106.2 | 2,500 | SF524126244P |
| 24 × 12 | 8-lug blank (custom drilled) | -44 | 124.3 | 3,200 | SF524128X44P |
| 24 × 12 | 8x165.1 | -44 | 125.2 | 3,200 | SF524128144P |
| 24 × 12 | 8x170 | -44 | 125.2 | 3,200 | SF524128344P |
| 24 × 12 | 8x180 | -44 | 124.3 | 3,200 | SF524128244P |
| 24 × 14 | 5/6-lug blank (custom drilled) | -76 | 71.5 | 2,500 | SF52414XX76P |
| 24 × 14 | 5x127 | -76 | 71.5 | 2,500 | SF524145176P |
| 24 × 14 | 5x139.7 | -76 | 77.8 | 2,500 | SF524145276P |
| 24 × 14 | 6x135 | -76 | 87.1 | 2,500 | SF524146176P |
| 24 × 14 | 6x139.7 | -76 | 106.2 | 2,500 | SF524146276P |
| 24 × 14 | 8-lug blank (custom drilled) | -76 | 124.3 | 3,200 | SF524148X76P |
| 24 × 14 | 8x165.1 | -76 | 125.2 | 3,200 | SF524148176P |
| 24 × 14 | 8x170 | -76 | 125.2 | 3,200 | SF524148376P |
| 24 × 14 | 8x180 | -76 | 124.3 | 3,200 | SF524148276P |
| 26 × 12 | 5/6-lug blank (custom drilled) | -44 | 71.5 | 2,500 | SF52612XX44P |
| 26 × 12 | 5x127 | -44 | 71.5 | 2,500 | SF526125144P |
| 26 × 12 | 5x139.7 | -44 | 77.8 | 2,500 | SF526125244P |
| 26 × 12 | 6x135 | -44 | 87.1 | 2,500 | SF526126144P |
| 26 × 12 | 6x139.7 | -44 | 106.2 | 2,500 | SF526126244P |
| 26 × 12 | 8-lug blank (custom drilled) | -44 | 124.3 | 3,200 | SF526128L44P |
| 26 × 12 | 8x165.1 | -44 | 125.2 | 3,200 | SF526128144P |
| 26 × 12 | 8x170 | -44 | 125.2 | 3,200 | SF526128344P |
| 26 × 12 | 8x180 | -44 | 124.3 | 3,200 | SF526128244P |
| 26 × 14 | 5/6-lug blank (custom drilled) | -76 | 71.5 | 2,500 | SF52614XX76P |
| 26 × 14 | 5x127 | -76 | 71.5 | 2,500 | SF526145176P |
| 26 × 14 | 5x139.7 | -76 | 77.8 | 2,500 | SF526145276P |
| 26 × 14 | 6x135 | -76 | 87.1 | 2,500 | SF526146176P |
| 26 × 14 | 6x139.7 | -76 | 106.2 | 2,500 | SF526146276P |
| 26 × 14 | 8-lug blank (custom drilled) | -76 | 124.3 | 3,200 | SF526148X76P |
| 26 × 14 | 8x165.1 | -76 | 125.2 | 3,200 | SF526148176P |
| 26 × 14 | 8x170 | -76 | 125.2 | 3,200 | SF526148376P |
| 26 × 14 | 8x180 | -76 | 124.3 | 3,200 | SF526148276P |
| 26 × 16 | 5/6-lug blank (custom drilled) | -99 | 71.5 | 2,500 | SF52616XX99P |
| 26 × 16 | 5x127 | -99 | 71.5 | 2,500 | SF526165199P |
| 26 × 16 | 5x139.7 | -99 | 77.8 | 2,500 | SF526165299P |
| 26 × 16 | 6x135 | -99 | 87.1 | 2,500 | SF526166199P |
| 26 × 16 | 6x139.7 | -99 | 106.2 | 2,500 | SF526166299P |
| 26 × 16 | 8-lug blank (custom drilled) | -99 | 124.3 | 3,200 | SF526168X99P |
| 26 × 16 | 8x165.1 | -99 | 125.2 | 3,200 | SF526168199P |
| 26 × 16 | 8x170 | -99 | 125.2 | 3,200 | SF526168399P |
| 26 × 16 | 8x180 | -99 | 124.3 | 3,200 | SF526168299P |
| 28 × 16 | 5/6-lug blank (custom drilled) | -99 | 71.5 | 2,500 | SF52816XX99P |
| 28 × 16 | 5x127 | -99 | 71.5 | 2,500 | SF528165199P |
| 28 × 16 | 5x139.7 | -99 | 77.8 | 2,500 | SF528165299P |
| 28 × 16 | 6x135 | -99 | 87.1 | 2,500 | SF528166199P |
| 28 × 16 | 6x139.7 | -99 | 106.2 | 2,500 | SF528166299P |
| 28 × 16 | 8-lug blank (custom drilled) | -99 | 124.3 | 3,200 | SF528168X99P |
| 28 × 16 | 8x165.1 | -99 | 125.2 | 3,200 | SF528168199P |
| 28 × 16 | 8x170 | -99 | 125.2 | 3,200 | SF528168399P |
| 28 × 16 | 8x180 | -99 | 124.3 | 3,200 | SF528168299P |
| 30 × 16 | 5/6-lug blank (custom drilled) | -99 | 71.5 | 2,500 | SF53016XX99P |
| 30 × 16 | 5x127 | -99 | 71.5 | 2,500 | SF530165199P |
| 30 × 16 | 5x139.7 | -99 | 77.8 | 2,500 | SF530165299P |
| 30 × 16 | 6x135 | -99 | 87.1 | 2,500 | SF530166199P |
| 30 × 16 | 6x139.7 | -99 | 106.2 | 2,500 | SF530166299P |
| 30 × 16 | 8-lug blank (custom drilled) | -99 | 124.3 | 3,200 | SF530168399P |
| 30 × 16 | 8x165.1 | -99 | 125.2 | 3,200 | SF530168199P |
| 30 × 16 | 8x170 | -99 | 125.2 | 3,200 | SF530168399P |
| 30 × 16 | 8x180 | -99 | 124.3 | 3,200 | SF530168299P |
Not sure which size suits your vehicle? Ask our fitment team. Bolt patterns, offsets and SKUs can change; please confirm before ordering.
